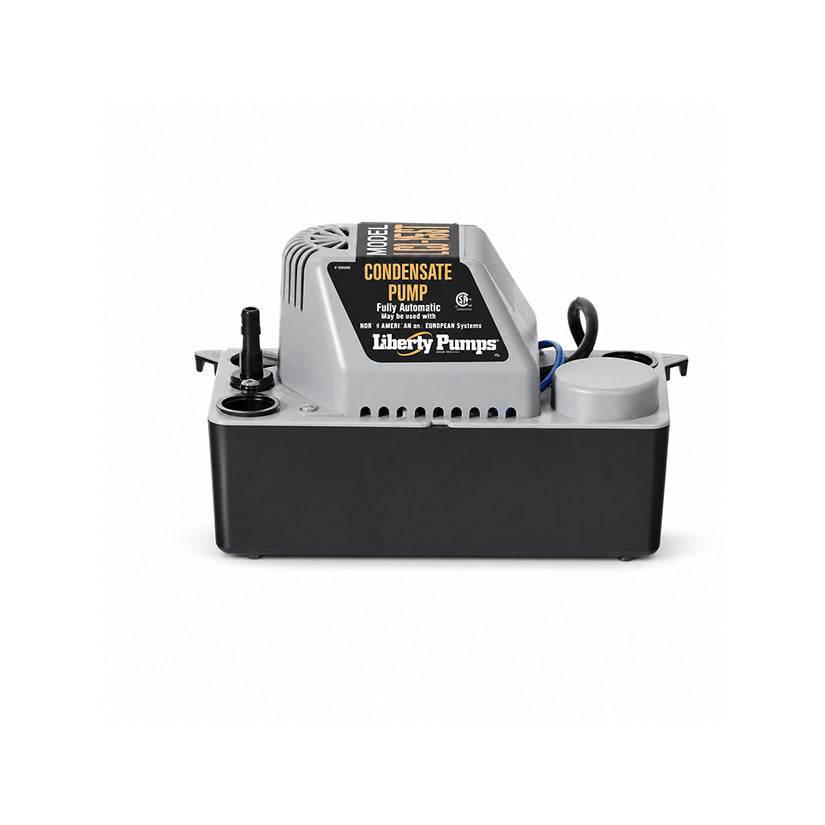

YCS Liberty Condensate Pump 115V with Tubing and Safety Switch

YCS Liberty Condensate Pump – 115V with Tubing & Safety Switch

The YCS Liberty Condensate Pump is a 115V automatic condensate removal pump designed for high-efficiency HVAC systems and other equipment that produce condensate. This model includes discharge tubing and a built-in safety switch, making it a reliable solution for removing collected condensation from furnaces, air conditioners, dehumidifiers, ice machines, and similar systems.

In simple terms: This pump automatically removes water produced by HVAC equipment and includes tubing plus a safety switch for added protection.

---

Best For

• HVAC Installers: Removing condensation from furnaces and air conditioning systems.
• Mechanical Contractors: Managing condensate from equipment like ice machines and dehumidifiers.

Key Benefits

• Automatic condensate removal: Pumps water away from HVAC equipment automatically.
• Includes safety switch: Helps protect against overflow by allowing shutdown or alarm connection.
• Includes tubing: Comes with discharge tubing for easier installation.
• High-impact ABS tank: Durable housing built for long service life.
• Quiet operation: Designed for low noise performance in residential and commercial environments.
• Thermally protected motor: Helps protect the pump from overheating.
• Compact design: Easy installation in tight mechanical spaces.

Typical Uses

• High-efficiency furnace condensate removal
• Air conditioning condensate drainage
• Dehumidifier water removal
• Ice machine drainage
• Commercial equipment condensate management

---

Specifications

Product Type	Condensate removal pump
Voltage	115V
Series	Liberty LCU Series
Tank Material	High-impact ABS
Outlet Size	3/8" O.D.
Included Accessories	Tubing and built-in safety switch
Power Cord	6 ft cord with ground
Maximum Fluid Temperature	150°F
Operation	Fully automatic

---

Installation Notes (Best Practice)

• Install near equipment: Place pump close to the condensate outlet of HVAC equipment.
• Connect included tubing: Route the discharge tubing from the pump outlet to an approved drain location.
• Wire the safety switch if needed: Connect the built-in safety switch to equipment shutdown or alarm systems for overflow protection.

Common Questions

Q: What equipment uses condensate pumps?
A: High-efficiency furnaces, air conditioners, dehumidifiers, and ice machines often produce condensation that must be pumped away.

Q: Does this model include tubing and a safety switch?
A: Yes. This 115V model includes both discharge tubing and a built-in safety switch.

Q: Is this pump automatic?
A: Yes. The pump activates automatically when condensate reaches the float switch level.
