Santa Fe Classic Dehumidifier Duct Kit – 8” Collar

Santa Fe Classic Duct Kit – 8 Inch Collar

The Santa Fe Classic Duct Kit is a purpose-built accessory designed to expand the ducting capabilities of the Santa Fe Classic Dehumidifier. This kit allows the unit to be ducted for improved airflow control, quieter operation, and better moisture removal in crawl spaces, basements, and utility rooms.

In simple terms: This duct kit lets you connect ductwork to your Santa Fe Classic dehumidifier so air can be pulled from and delivered to hard-to-reach areas.

In irregularly shaped crawl spaces or unfinished areas, ducting helps distribute airflow more evenly while reducing noise and vibration at the unit. This kit is ideal when the dehumidifier is installed in a utility space but you want the benefits of controlled air movement throughout the conditioned area.

Why Use the Santa Fe Classic Duct Kit

• Improves airflow reach: Directs air into corners and difficult spaces.
• Reduces noise and vibration: Helps isolate sound from the dehumidifier.
• Flexible installation: Allows ducted inlet and exhaust configurations.
• Cleaner finished feel: Enables installation in utility rooms while conditioning adjacent spaces.

Key Features

• 8-inch duct collars: Designed for standard HVAC duct connections.
• Supply & return capability: Supports ducted inlet and exhaust airflow.
• Fresh air option: Includes a 6-inch opening that may be used as a fresh air inlet.
• Engineered fit: Designed specifically for the Santa Fe Classic Dehumidifier.
• Noise reduction: Helps minimize vibration and sound at the unit.

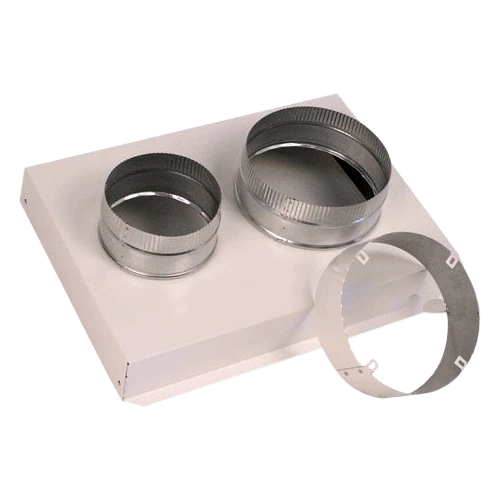

What’s Included

• (2) 8-inch duct collars (supply and return)
• (1) 6-inch fresh air collar
• Plenum
• Mounting hardware

Compatibility

• Santa Fe Classic Dehumidifier

Installation Overview

• Allows ducted inlet mounting above the filter guides.
• Exhaust collar mounts directly to the blower outlet.
• Supports both horizontal and vertical airflow configurations.
• Fresh air opening can be used to introduce outside air if desired.

Specifications

Why This Matters

Proper air movement is critical for effective dehumidification. By allowing controlled, ducted airflow, the Santa Fe Classic Duct Kit helps maximize system performance, improve comfort, and reduce noise—especially in crawl spaces and basements with complex layouts.
