Santa Fe Dehumidifier Condensate Pump Kit – 4022220 (I506670)

Santa Fe Dehumidifier Condensate Pump Kit – Model I506670 (4022220)

The Santa Fe Dehumidifier Condensate Pump Kit is a purpose-built accessory designed to automatically remove condensate water from Santa Fe and Ultra-Aire dehumidifiers when gravity drainage is not possible. This pump kit allows collected moisture to be safely moved to a remote drain location, even when the discharge point is above the dehumidifier.

In simple terms: This pump lets your dehumidifier drain water automatically when there isn’t a nearby floor drain or when water needs to be pumped upward.

Designed specifically for Santa Fe moisture-control systems, this kit features durable, high-temperature and acid-resistant construction along with a bearingless motor for long-term reliability in crawl space and basement environments.

---

Why You’d Use This Pump

• No nearby drain: Pump condensate to a remote drain, sump, or approved discharge point.
• Vertical lift needed: Move water upward when the drain is above the unit.
• Flexible installation: Allows optimal dehumidifier placement without drainage limitations.

---

Key Features

• 2-quart reservoir: Provides stable condensate collection for reliable pump operation.
• Vertical lift capability: Supports condensate pumping up to 12–15 ft vertically (do not exceed 15 ft).
• Total discharge run: Up to 20 ft combined vertical and horizontal distance.
• Durable housing: High-temperature, acid-resistant ABS plastic construction.
• Bearingless motor: Designed for enhanced reliability and long service life.
• Horizontal or vertical configuration: Supports multiple installation orientations.

---

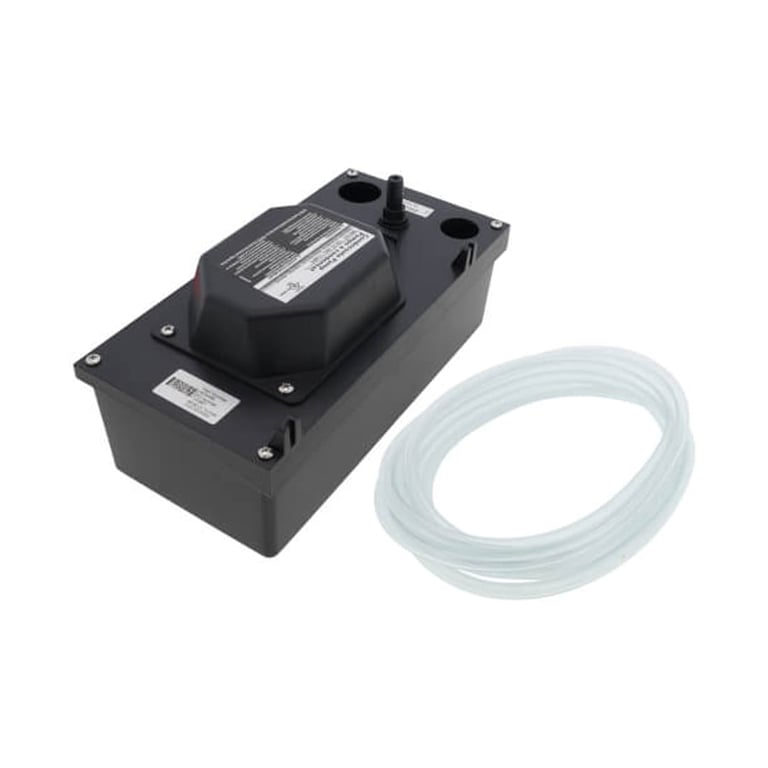

What’s Included

• 120V condensate pump with power cord
• 3/8″ x 20 ft condensate drain hose
• Hose clamp
• Mounting screws (required for vertical configuration)

---

Compatible Dehumidifiers

Designed for use with a wide range of Santa Fe and Ultra-Aire dehumidifiers, including but not limited to:

• Santa Fe Advance series
• Santa Fe Classic
• Santa Fe Compact70
• Santa Fe Impact series
• Santa Fe HC
• Ultra-Aire 70H, 90H, 98H, 100V, 120H, 135H, 150H, SD12
• Ultra-Aire XT series (105H, 155H, 205H)

---

Specifications

Product Type	Dehumidifier condensate pump kit
Manufacturer	Santa Fe (Therma-Stor LLC)
Manufacturer SKU	4022220
Model Reference	I506670
Reservoir Capacity	2 quarts
Vertical Lift	Up to 12–15 ft (do not exceed 15 ft)
Total Discharge Distance	Up to 20 ft
Power	120V
Unit Sold	Each

---

Installation Notes & Safety

• Disconnect dehumidifier from power before installing the pump kit.
• Route the drain hose carefully to prevent kinks and ensure proper drainage.
• Do not exceed 15 ft of vertical lift when pumping to a drain above the unit.
• Plug both the pump and dehumidifier into a GFCI-protected outlet.
• Follow all manufacturer installation and safety guidelines.

Why This Matters

Reliable drainage is critical for proper dehumidifier operation. This Santa Fe condensate pump kit provides the flexibility needed to install dehumidifiers where gravity drainage isn’t available, helping maintain consistent moisture control in crawl spaces and basements without interruption.
