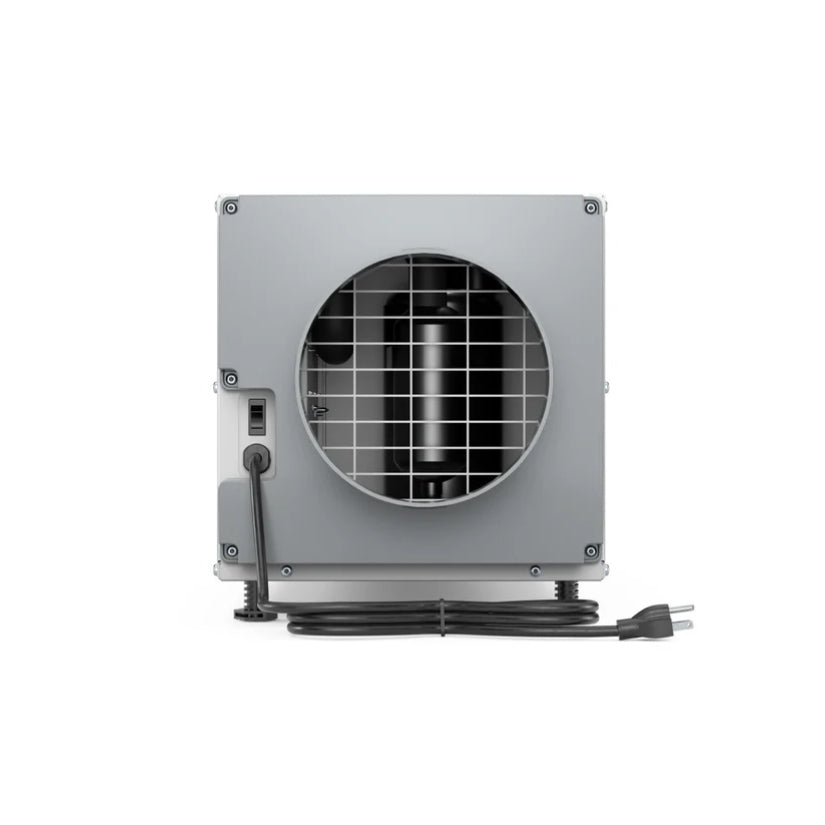

AprilAire E070 70 Pint Crawl Space Dehumidifier

AprilAire E070 70 Pint Crawl Space Dehumidifier

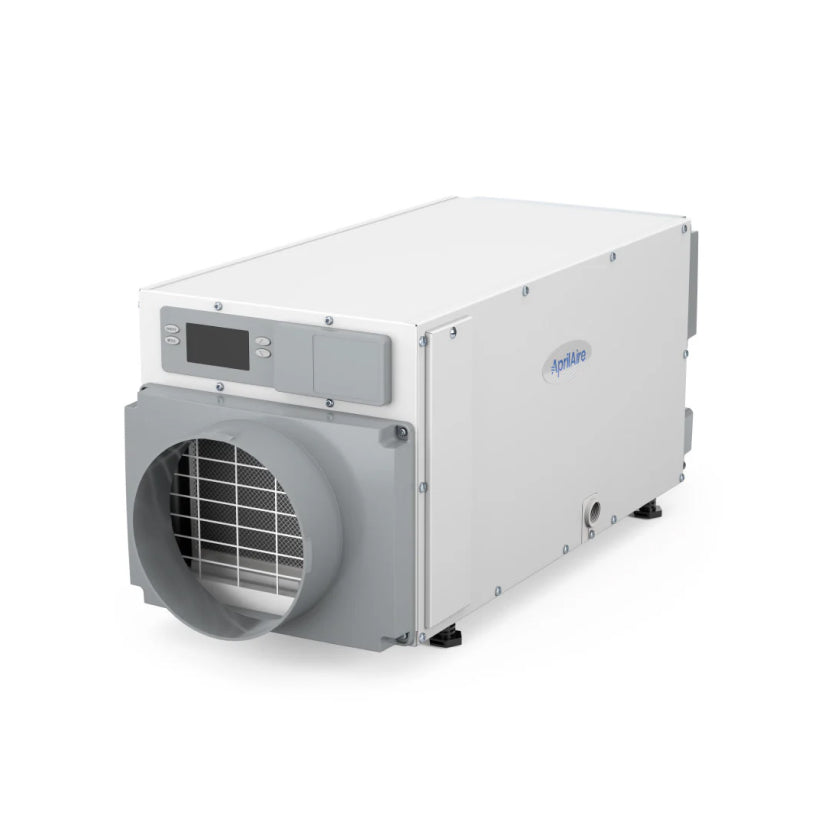

The AprilAire E070 70 Pint Crawl Space Dehumidifier is a professional-grade humidity control system designed for sealed crawl spaces and stand-alone moisture control applications. It removes up to 70 pints of moisture per day at 80°F and 60% RH, helping protect the home from mold, mildew, musty odors, pests, and moisture-related structural damage.

The E070 uses a sealed R32 refrigeration system to cool incoming air below its dew point, remove moisture through continuous drainage, then reheat and return drier air back into the space. Its compact cabinet, washable MERV 8 filter, built-in digital controls, and plug-in power cord make it a strong choice for professional crawl space encapsulation and basement humidity control projects.

In simple terms: This dehumidifier keeps crawl spaces and basements dry by automatically removing excess moisture and draining it away continuously.

---

Best Applications / Uses

• Sealed crawl spaces: Designed for crawl spaces up to approximately 2,200 sq. ft.
• Basements: Helps reduce dampness, musty odors, and excess humidity.
• Crawl space encapsulation: Ideal for professional moisture control systems.
• Stand-alone humidity control: Designed for independent operation without HVAC ducting.
• Moisture damage prevention: Helps protect wood framing, insulation, and stored items.

Key Benefits

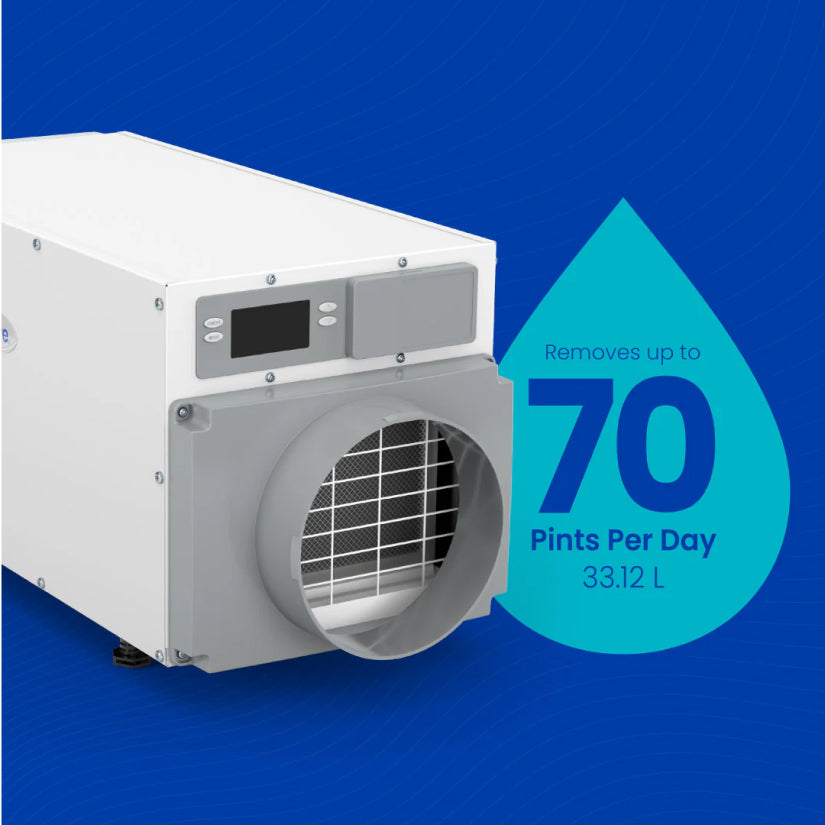

• 70 pint moisture removal: Removes up to 70 pints per day at 80°F and 60% RH.
• Compact crawl space design: 12.5" x 12.5" x 25" cabinet fits tight access areas.
• Built-in digital control: Front-mounted control automatically maintains the selected humidity level.
• Air sampling logic: Samples air and runs only when dehumidification is needed.
• Optional air cycling: Fan can run 0–60 minutes per hour to help equalize humidity and temperature.

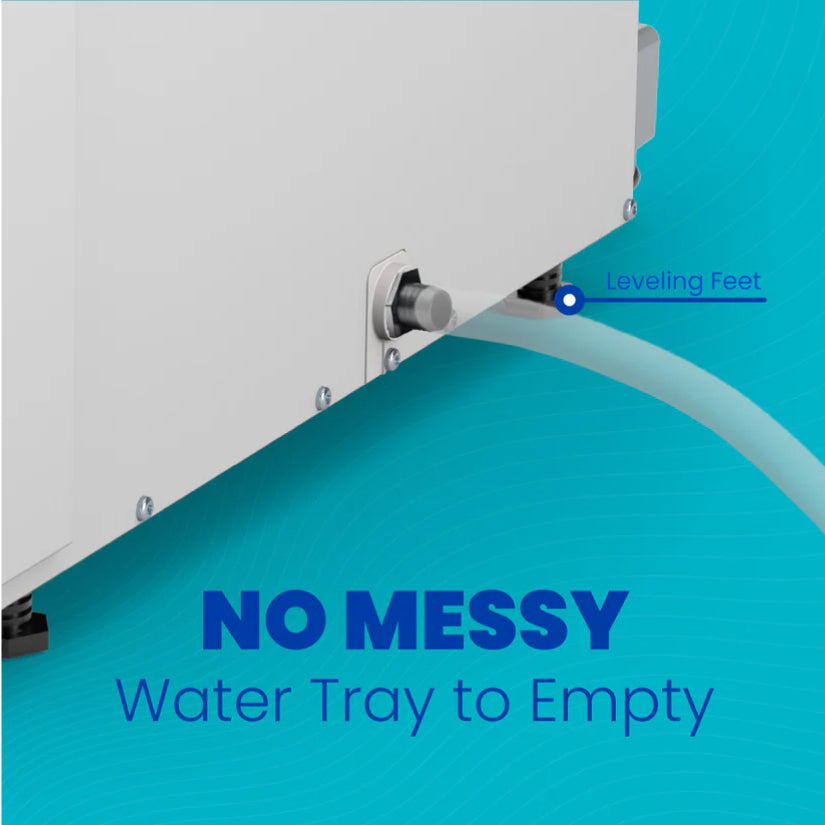

• Continuous drainage: Includes 10 ft drain tube and 3/4" threaded drain connection.
• No P-trap required: Patented backflow drain insert simplifies drainage setup.
• Washable MERV 8 filter: Helps capture dust and airborne particles before air recirculates.

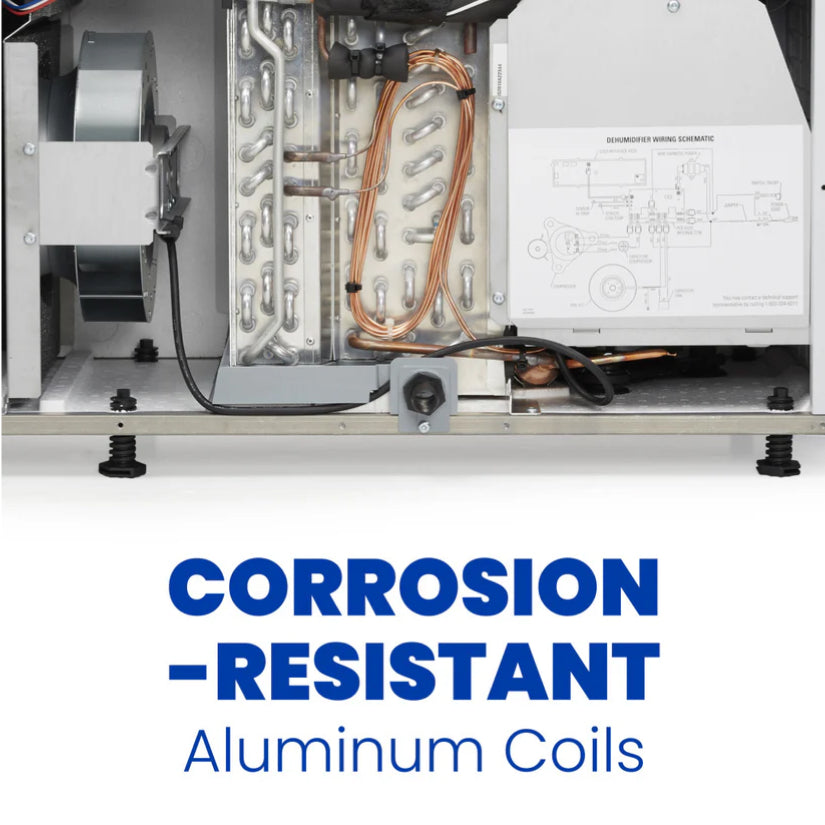

• Corrosion-resistant aluminum coils: Built for long-term reliability in humid environments.
• Quiet operation: Operates at 53 dBA when ducted.
• Plug-in power: Uses a standard 120 VAC outlet with an 8 ft power cord.
• Low idle draw: Uses less than 3 watts in idle mode.

Typical Uses

• Crawl space moisture control
• Basement humidity management
• Mold and mildew prevention
• Musty odor reduction
• Crawl space encapsulation systems
• Below-floor air quality improvement
• Structural moisture protection

---

Complete Specifications

Brand	AprilAire
Model	E070
Product Type	Crawl Space Dehumidifier
Capacity @ 80°F / 60% RH	70 pints/day
Capacity @ 73°F / 60% RH	53 pints/day
Coverage	Up to approximately 2,200 sq. ft. sealed crawl space
Airflow @ 0.0" w.c.	200 CFM
Airflow @ 0.2" w.c.	170 CFM
Airflow @ 0.4" w.c.	140 CFM
Max External Static Pressure	0.4" w.c.
Energy Factor @ 80°F / 60% RH	2.1 L/kW-h
Energy Factor @ 73°F / 60% RH	1.8 L/kW-h
Power	120 VAC, 1 Phase, 60 Hz
Current Draw	5.4 Amps
Idle Power	Less than 3 Watts
Noise Level	53 dBA when ducted
Dimensions	12.5" W x 12.5" H x 25" L
Unit Weight	56 lbs
Shipping Weight	72 lbs
Refrigerant	R32
Coils	Corrosion-resistant aluminum
Cabinet Insulation	1/2" EPS
Discharge Air Temperature Rise	10°F–30°F
Duct Collars	8" inlet and outlet collars
Power Cord	8 ft plug-type cord
Drain Connection	3/4" MNPT threaded connection
Drain Tube Included	10 ft x 3/4" drain tube
Filter	Washable MERV 8 Filter #5695
Optional Filter Upgrade	MERV 11 Filter #5946
Dehumidification Operating Range	50°F–104°F inlet air, 40°F minimum dew point
Ventilation Operating Range	40°F–140°F, 0%–99% RH non-condensing

---

Controls and Operation

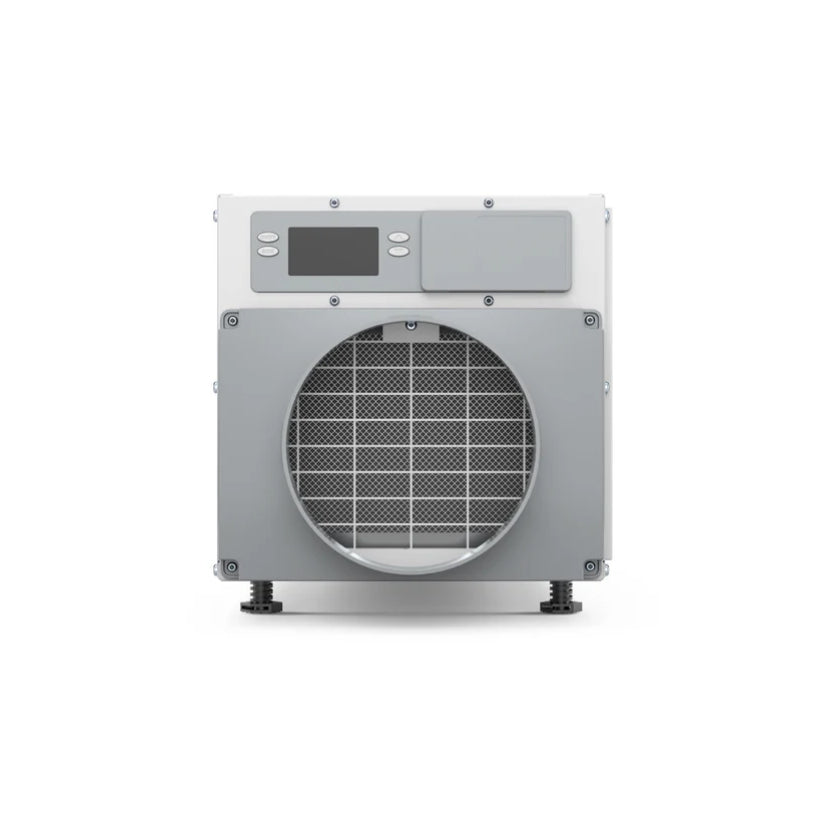

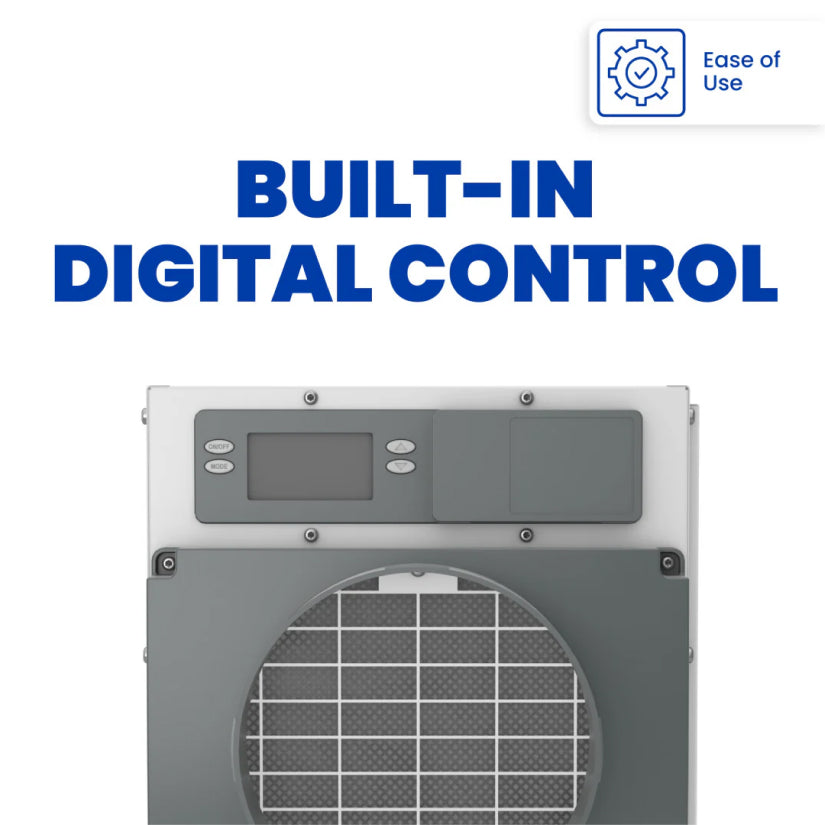

• Front-mounted digital control: Built-in display for humidity settings and system status.
• Automatic humidity control: Samples the air and runs the compressor when moisture removal is needed.
• Air sampling cycle: Samples air for 3 minutes and re-samples hourly.
• Humidity set point logic: Runs until humidity drops below the target range.
• Optional air cycling: Fan can run 0–60 minutes per hour to help even out conditions.
• Rotatable user interface: Display can rotate 180° for installation orientation.
• RH offset adjustment: Selectable offset from -5% to +5%.
• Diagnostic codes: On-display E1–E9 codes assist troubleshooting.

What’s Included

• AprilAire E070 dehumidifier
• Inlet and outlet duct collars
• Installation instructions and owner’s manual
• #10 x 1/2" screws x 9
• Threaded barbed drain fitting
• Torx bit
• 10 ft x 3/4" drain tube

---

Compatible Accessories

• Model 76 Dehumidifier Control: Living-space remote control option.
• Model 4856 Condensate Pump: Optional pump with up to 22 ft lift.
• Model 5958 Pump Bracket: Bracket for condensate pump installation.

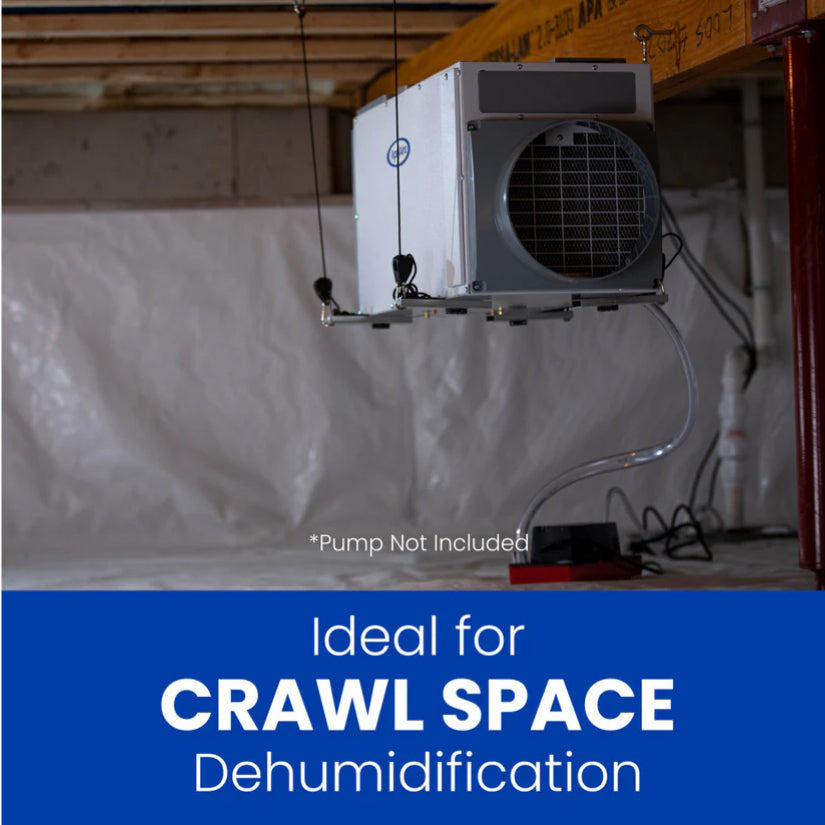

• Model 5822 Hanging Kit: Suspension kit rated up to 200 lbs.
• Model 5879 Riser Kit: Raises the unit for installation clearance.
• Model 5546 Living Space Duct Kit: Ducting accessory for specific applications.
• Model 5427 Crawl Space Alert: LED status indicator.
• Filter #5695: Replacement washable MERV 8 filter.
• Filter #5946: Optional MERV 11 upgrade filter.
• Model 70000238: User interface upgrade kit.

---

Installation Notes (Best Practice)

• Crawl space / stand-alone use: Do not duct this model into the HVAC system.
• Use two people to lift: Unit weighs 56 lbs and should be handled carefully.
• Install level: Proper leveling helps support reliable condensate drainage.
• Indoor use only: Install in a protected indoor or crawl space environment.
• Wait if stored on side: Allow 24 hours before operation if the unit was not stored upright.
• Remove shipping bracket: Remove the compressor shipping bracket before startup.
• Ducting guidance: Add 5–10 ft insulated duct on inlet and outlet, pointed in opposite directions.
• Maximum duct length: Do not exceed 100 ft total duct length.
• Keep intake off floor: Keep intake duct raised to avoid pulling debris or water.
• Service clearance: Allow approximately 15" clearance for filter removal and side-panel access.
• No extension cord: Use the included 8 ft power cord with a proper outlet.
• Drain slope: Drain tubing or hard PVC pipe should maintain a constant downward slope.
• Condensate pump option: Use Model 4856 when gravity drainage is not available.
• Float switch option: Remove factory float-switch jumper when adding a float switch.

Maintenance

• Clean filter every 6 months: The unit provides a CLEAN FILTER reminder.
• Wash filter with water: Rinse and reinstall with airflow arrow pointing into the unit.
• Check drain every 6 months: Keep drain line clear for continuous operation.
• Clean drain pan: Use mild detergent as needed.
• Vinegar flush: Pour approximately 1 cup white vinegar through the capped drain access during maintenance.
• Sealed refrigeration system: Refrigeration system is not field-serviceable.

---

Common Questions

Q: How much moisture does the AprilAire E070 remove?
A: It removes up to 70 pints per day at 80°F and 60% relative humidity. At 73°F and 60% RH, capacity is 53 pints per day.

Q: What size crawl space can it handle?
A: The E070 is designed for sealed crawl spaces up to approximately 2,200 sq. ft. Actual performance depends on sealing conditions, moisture load, and installation.

Q: Can the E070 be ducted into my HVAC system?
A: No. The E070 is designed for crawl space and stand-alone applications and should not be ducted into the HVAC system.

Q: Does this unit need special wiring?
A: No. It uses an 8 ft plug-in power cord and operates on a standard 120 VAC outlet.

Q: Does the E070 have a water bucket?
A: No. It is designed for continuous drainage using the included drain tube or an optional condensate pump.

Q: What filter does it use?
A: It uses a washable MERV 8 filter, part #5695. A MERV 11 upgrade filter, part #5946, is also available.

Q: How often should the filter be cleaned?
A: Check and clean the filter every 6 months, or more often in dusty crawl space conditions.

Q: How loud is the unit?
A: The E070 operates at 53 dBA when ducted.

Q: What refrigerant does the AprilAire E070 use?
A: It uses R32 refrigerant in a sealed refrigeration system.

Q: Can I control it from the living space?
A: Yes. The Model 76 Dehumidifier Control can be used as a living-space remote control option.

Q: What is the difference between E070 and E070W?
A: The E070 and E070W have the same performance and dimensions. The E070W adds Wi-Fi capability, a color graphical display, and app-based monitoring and control.
